Experimental Example of Superposition

A review of an experiment in which superposition is demonstrated follows. We focus specifically on work done by the Laboratoire Brossel in Paris [3,4,1]. In their experiments using Ramsey interferometry, a microwave cavity, and an ensemble of Rydberg atoms, the Paris team not only demonstrate quantum superposition, but they were also able to demonstrate decoherence. The reader curious for more detail than presented here is especially encouraged to read the theoretical proposal of Davidovich et al. [3].

The experimental set up is shown in Figure 3.1. A resonant cavity (C) is prepared to contain a field off resonance with the $ \vert g\rangle \rightarrow \vert e\rangle$ resonance , though for the following two examples this cavity is inactive (but plays a crucial part in the decoherence experiment). The Paris group uses a high-Q cavity, where $ Q=2\pi \nu \varepsilon/P$ , is a measure of the efficiency of the cavity in storing a field ( $ \varepsilon$ is the energy stored, $ \nu$ is the resonant frequency, and $ P=-dE/dt$ is the energy loss) such that the average lifetime of a resonant photon in the cavity is proportional to Q [17] and thus has a relatively long relaxation time. A coherent state is injected from (S) into the cavity (C) in a later experiment discussed regarding decoherence.

Two low-Q cavities are used (R1, R2) to apply microwave fields produced by S'. B represents a ``black-box'' which prepares Rydberg atoms (atoms with one valence electron in an extremely high n state), and (De) and (Dg) are detectors which provide an electric field that is sufficient to ionize the Rydberg atoms in their excited state (De) or ground state (Dg). Laser beams L1, L1' are used to select for atoms of the proper velocity, and the L2, B setup excites Rydberg atoms into their circular states (high quantum number n). The entire setup is enclosed and cooled to 0.6K to make thermal radiation negligible.

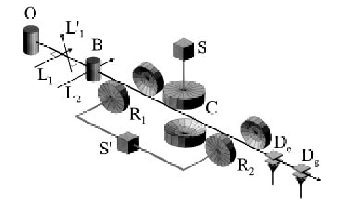

Figure 3.1: Experimental setup from [1] Paris group (1996)
\includegraphics[width=7.5cm]{ram.ps}

Henceforth we shall assume ideality and ignore experimental details which detract from the flow of our report. The actual experiment followed closely. The Rydberg atoms are excited into the states $ \vert e\rangle$ or $ \vert g\rangle$ corresponding to quantum number $ n=51$ and $ n=50$ respectively. The $ \vert e\rangle \rightarrow \vert g\rangle$ transition frequency is 51.099 GHz [3], and cavities R1 and R2 contain fields resonant with this transition.

To describe what happens to the atom as it passes through R1 toward C and R2, we need to introduce (briefly) the semi-classical Rabi model [7] appropriate for such resonance. The derivation is simpler in the semi-classical form, but similar results can be obtained (see appendix) in the full quantum (i.e. Jaynes-Cummings model) derivation. Furthermore, it can be demonstrated that the fields in R1 and R2 behave classically and so do not produce entanglement, thus justifying a semi-classical approach [18]. We assume an atom capable of being in two states (a good approximation for a Rydberg atom under controlled circumstances), $ \vert e\rangle$ and $ \vert g\rangle$ where $ \omega_0=(E_e-E_g)/\hbar$ and the laser field produces a frequency $ \omega \approx \omega_0$ . We assume an interaction Hamiltonian of simply $ H_i(t)=V_0\cos \omega t$ . The state vector can be written,

$\displaystyle \vert\psi(t)\rangle = C_g(t)\exp(-iE_gt/\hbar)\vert g\rangle + C_e(t)\exp(-iE_et/\hbar)\vert e\rangle$ (3.1)

Using the time-dependent Schrödinger equation gives
$\displaystyle \zeta$ $\displaystyle =$ $\displaystyle \langle e\vert V\vert g\rangle$
$\displaystyle \dot{C_g}$ $\displaystyle =$ $\displaystyle -\frac{i}{\hbar}\zeta \cos \omega t \exp(-i\omega_0t)C_e$
$\displaystyle \dot{C_e}$ $\displaystyle =$ $\displaystyle -\frac{i}{\hbar}\zeta \cos \omega t \exp(-i\omega_0t)C_g$

A valid assumption has us suppose that $ C_g(0)=1$ and $ C_e(0)=0$ , and using the identity $ \cos\omega t = (e^{i\omega t}+e^{-i\omega t})/2$ , we make application of the ``Rotating wave approximation'' where terms $ \omega + \omega_0$ are disregarded and terms $ \omega - \omega_0$ are kept (since $ \omega$ is in near resonance, this latter term dominates the behavior),
$\displaystyle \dot{C_g}$ $\displaystyle =$ $\displaystyle -\frac{i}{2\hbar}\zeta \exp(-i\Delta t)C_e$
$\displaystyle \dot{C_e}$ $\displaystyle =$ $\displaystyle -\frac{i}{2\hbar}\zeta \exp(+i\Delta t)C_g$
0 $\displaystyle =$ $\displaystyle \ddot{C_e}-i\Delta \dot{C_e}+\frac{\zeta^2C_e}{4\hbar^2}$

Here $ \Delta = \omega_0 - \omega$ is called the detuning of the atomic transition frequency and laser field. After assuming a characteristic solution of $ \exp (i \lambda t)$ we arrive at a characteristic equation of $ \lambda_{\pm} = (\Delta \pm \sqrt{\Delta^2 + \zeta^2/\hbar^2})/2$ , and fitting the given initial conditions, one finds,
$\displaystyle C_e(t)$ $\displaystyle =$ $\displaystyle A_+\exp( i \lambda_+ t)+ A_{-}\exp(i \lambda_{-} t)$
$\displaystyle A_{\pm}$ $\displaystyle =$ $\displaystyle \mp \frac{\zeta}{2\hbar}\frac{1}{\sqrt{\Delta^2 + \eta^2/\hbar^2}}$
$\displaystyle \Omega_R$ $\displaystyle =$ $\displaystyle \sqrt{\Delta^2 + \zeta^2/\hbar^2}$
$\displaystyle C_e(t)$ $\displaystyle =$ $\displaystyle i\frac{\zeta}{\Omega_R \hbar}\exp(i\Delta t/2)$
$\displaystyle C_g(t)$ $\displaystyle =$ $\displaystyle \exp(i \Delta t/2)\left(\cos(\Omega_R t/2)-i\frac{\Delta}{\Omega_R}\sin(\Omega_Rt/2)\right)$

To introduce the concept of $ \pi/2$ and $ \pi $ pulses, we consider the case when $ \Delta=0$ . Then

$\displaystyle P_e(t)=\vert C_e(t)\vert^2=\sin^2(\zeta t/2\hbar)$

$\displaystyle P_g(t)=\cos^2(\zeta t/2\hbar)$

Define the atomic inversion as $ W(t)=P_e(t)-P_g(t) = -\cos(\zeta t/\hbar)$ . Thus we see how the probability of an atom exposed to a resonant field being in one state or the other is dependent upon the time exposed to the field. We make this explicit in the following table.
Pulse $ \rightarrow$ $ \pi $ : $ t=\pi \hbar/\zeta$ $ \pi/2$ : $ t=\pi \hbar /2 \zeta$
W(t) 1 0
Status $ C_e=1$ , $ C_g=0$ $ C_e=i/\sqrt{2}$ , $ C_g=1/\sqrt{2}$

Thus we see the necessity for monokinetic Rydberg atoms (though in actuality one gets quasimonokinetic Rydberg atoms [3]). The speed of the atoms will determine their time exposed to the $ R_1$ and $ R_2$ fields, and thus the state function. In order to obtain the statistics necessary to make quantum mechanical measurements, we desire the ability to nearly perfectly replicate the initial state (the state preparation procedure). The Paris group demonstrated this ability and the Rabi oscillation in 1995 [5] under a similar but simpler apparatus shown in Figure 3.1. They repeat the state preparation on a large set of Rydberg atoms, select those of a certain speed which will result in a corresponding exposure time to the resonant field, and record the the state of the atom after exiting the field. For each selected t, about 20,000 are measured and their state probability ( $ \vert e\rangle\rightarrow +1$ , $ \vert g\rangle\rightarrow +0$ ) is averaged.

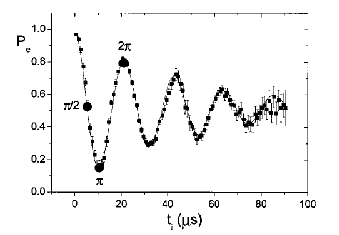

Figure: Experimental Rabi oscillations from [4,5] Paris group. Initial state is $ \vert e\rangle$ with a $ \pi $ pulse corresponding to a collective shift to the ground state. The dampening of the oscillation is due to technical imperfections in the experiment.
\includegraphics[width=7.5cm]{paris.ps}
Now let us explore the progress of a Rydberg atom in the larger Paris group experiment. We will follow one atom, and suppose it starts out simply in the excited state, $ \vert\psi_a\rangle=\vert e\rangle$ . The atom has a velocity such that its time through the R1 resonance chamber is a $ \pi/2$ pulse, and the atom exits in the state, ideally,

$\displaystyle \vert\psi_a\rangle = \frac{1}{\sqrt{2}}(\vert g\rangle + \vert e\rangle)$ (3.2)

However, realistically we expect the detuning will be non-zero, which introduces a phase difference,
$\displaystyle \vert g\rangle \rightarrow \frac{\vert g\rangle + \exp(i\phi)\ver...
...angle \rightarrow \frac{-\exp(-i\phi)\vert g\rangle + \vert e\rangle}{\sqrt{2}}$

Here $ \phi \approx \Omega_R \ T$ where T is the exposure time to the second ``Ramsey'' beam. We see that the atom has two identical paths for ending up in each of the electronic states, and thus enters the superposition.
Figure 3.3: Possible paths for the wave function.
\includegraphics[width=4.5cm]{ram2.ps}

The probability of finding the atom in $ \vert g\rangle$ is thus the squared sum of the amplitude of the two possible paths, i.e.,

$\displaystyle P_g = \frac{1-\cos\phi}{2}$ (3.3)

This is exactly what the Paris team found in one such experiment [4]. There result is shown in Figure 3.4.

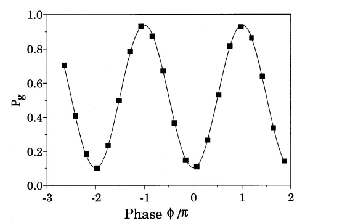

Figure 3.4: Experimental evidence of Ramsey fringes from the superposition of two quantum paths (from [4]). The fringes have 85% contrast due to various non-idealities in the experimental set-up.
\includegraphics[width=7.5cm]{ram3.ps}

Thus we have seen both theoretical and real-world examples of quantum effects that must be removed by decoherence.
